Galvanized chain link fence machine price

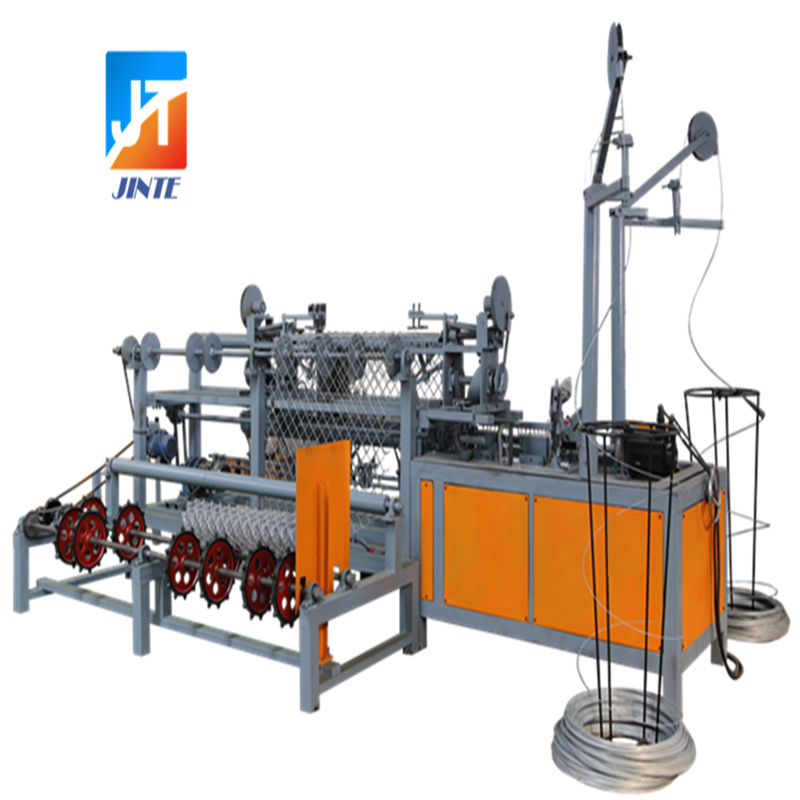

Chain link fence machine is also called diamond mesh machine or orthorhombic machine,which
used to make chain link fence machine, used as fences for playground and gardens, super
highway, railway, airport, port, residence and so on. For the auto chain link fence machine, w e
have two models: one is DP-LW 20-100, single mold single sprial; another is DP-LW 25-80, single
mold double sprial. The raw material can be galvanized wire, pvc coated wire.
Machine advantage
1. Taiwan Delta servo motor and gear box, rate 1:3
2. Single mold, double spiral, so have high production
3. PLC control and touch screen
4. hanging control panel
5. Weaving the side
6. Roll the mesh automatically
7. Alarm device and emergency Button
8. The raw material can be galvanized wire, pvc
8. We accept any special orders from clients.
Technical Parameters
| Model | JT-LW 25-80 | JT-LW 20-100 |
| Wire diameter | 2-4mm | 2-4mm |
| Mesh size | 25-80mm | 20-100mm |
| Mesh Width | 0.5-4M | 0.5-4M |
| Mesh length | Min. 30M | Min. 30M |
| Speed | 120-180 square meters per hour | 70-80 square meters per hour |
| Raw material | Galvanized wire, PVC coated wire, etc | |
| Mesh side | Knuckled and twisted, both knuckled, both twisted | |
| Motor | 9.25kw | 6kw |
| Size | 6700*1430*1800mm 5100*1700*1250mm | 5800*3000*1500mm |
