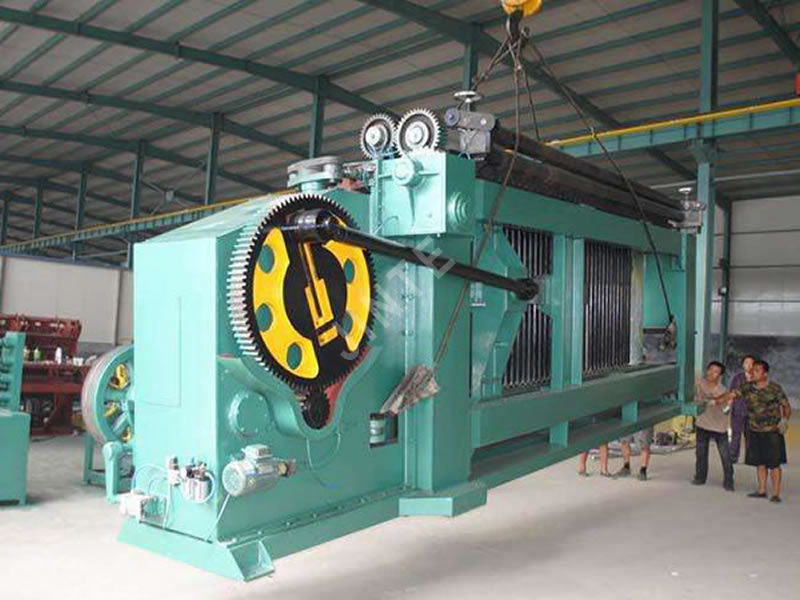

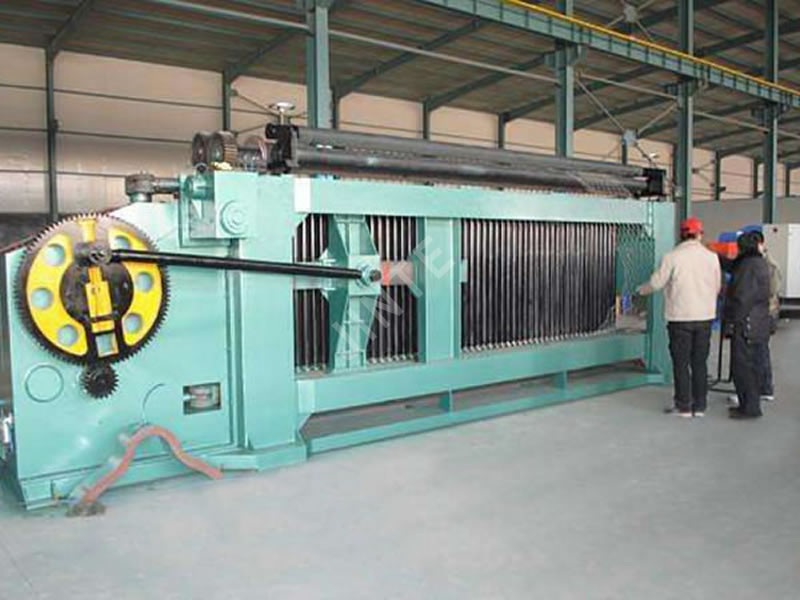

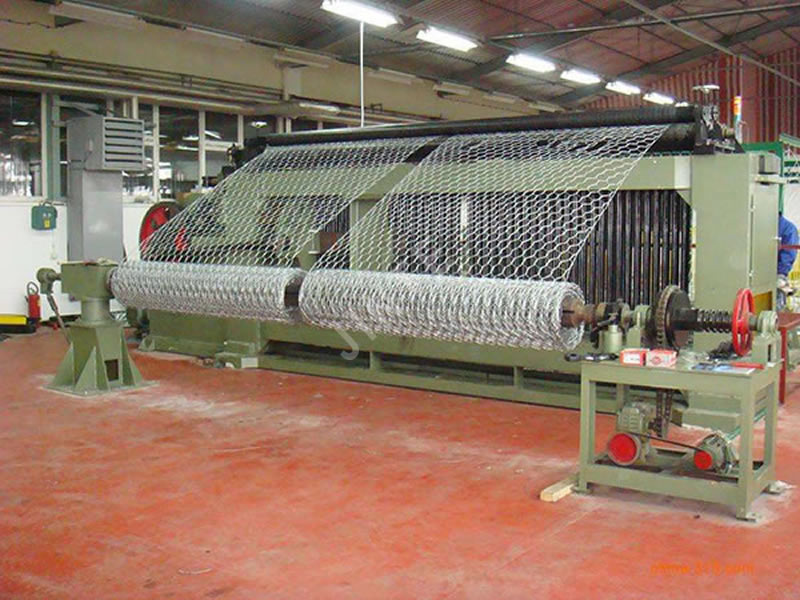

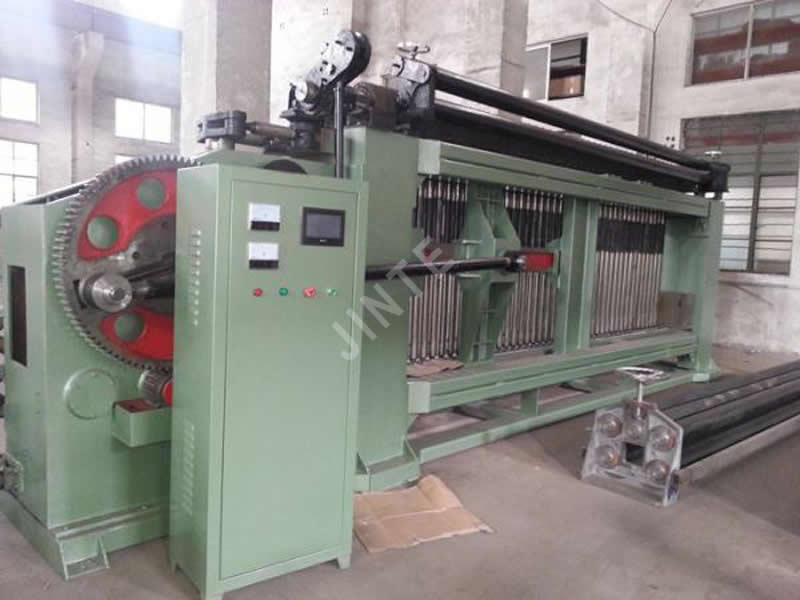

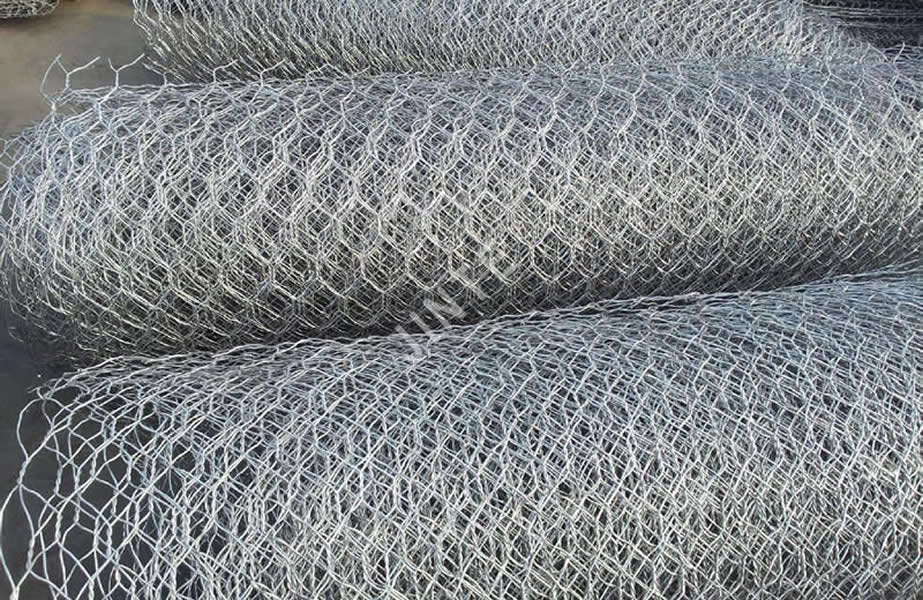

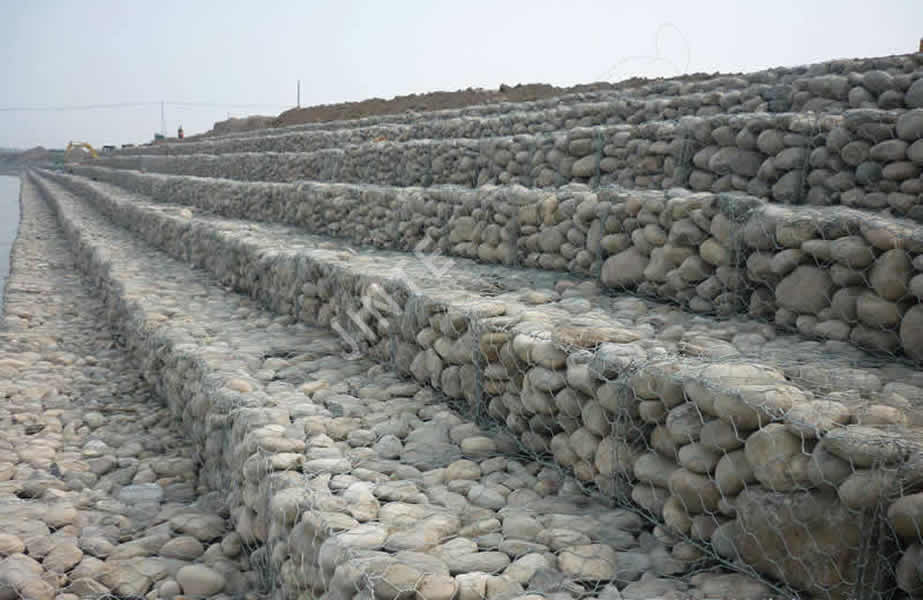

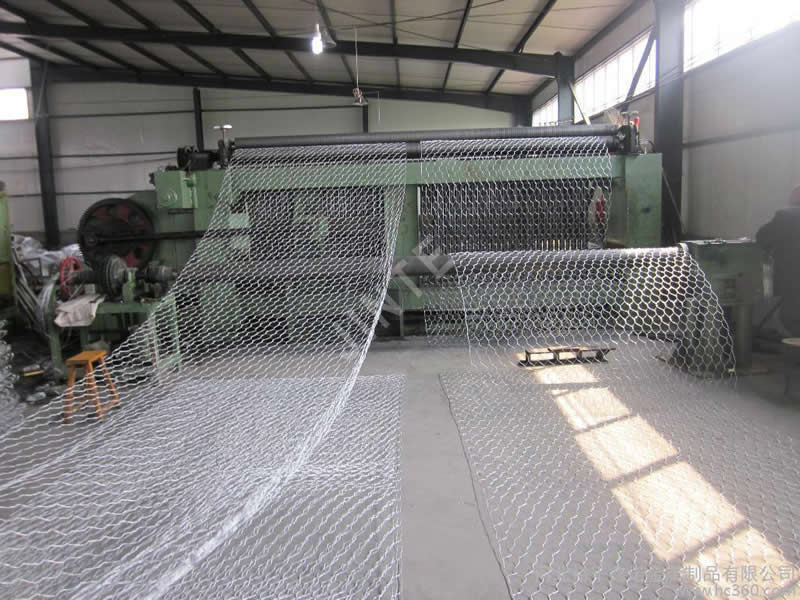

The gabion mesh machine is also called hexagonal mesh machine, the machine is designed reasonably, the structure is simple, the operation is stable, the performance is good, the maintenance is convenient. The product is widely used in slope protection, slope greening, railway highway isolation Hulanwang, it also made the stone cage, cushion stone, used in the rivers, dams and seawall of scour protection and reservoir, river closure.
| Model | Mesh size(mm) | Max width(mm) | Wire dia(mm) | Twisted No. | Main axis speed(r/min) | Power(KW) | Theoretical speed(m/h) |
| LNWL23-60-2 | 60*80 | 2300 | 1.6-3.0 | 3 | 25 | 11 | 165 |
| LNWL23-80-2 | 80*100 | 1.6-3.0 | 195 | ||||
| LNWL23-100-2 | 100*120 | 1.6-3.2 | 225 | ||||
| LNWL23-1200-2 | 120*150 | 1.6-3.5 | 20 | 255 | |||
| LNWL33-60-2 | 60*80 | 3300 | 1.6-2.8 | 25 | 15 | 165 | |
| LNWL33-80-2 | 80*100 | 1.6-3.0 | 195 | ||||
| LNWL33-100-2 | 100*120 | 1.6-3.2 | 225 | ||||
| LNWL33-120-2 | 120*150 | 1.6-3.5 | 20 | 255 | |||
| LNWL43-60-2 | 60*80 | 4300 | 1.6-2.8 | 25 | 22 | 165 | |
| LNWL43-80-2 | 80*100 | 1.6-3.0 | 195 | ||||
| LNWL43-100-2 | 100*120 | 1.6-3.0 | 225 | ||||
| LNWL43-120-2 | 120*150 | 1.6-3.2 | 20 | 255 | |||
| LNWL43-60-3 | 60*80 | 4300 | 1.6-2.8 | 5 | 25 | 22 | 165 |
| LNWL43-80-3 | 80*100 | 1.6-3.0 | 195 | ||||
| LNWL43-100-3 | 100*120 | 1.6-3.0 | 225 | ||||
| LNWL43-120-3 | 120*150 | 1.6-3.2 | 20 | 255 |
Our Services
1. Guarantee period: 12 months
2. Our engineers are available to install and maintain machine overseas.
3. Customized machine.
4. Fast delivery.
6. Factory price.
7. Door to Door service or 24-hour email service.
8. Special specifications can be made according to clients’
