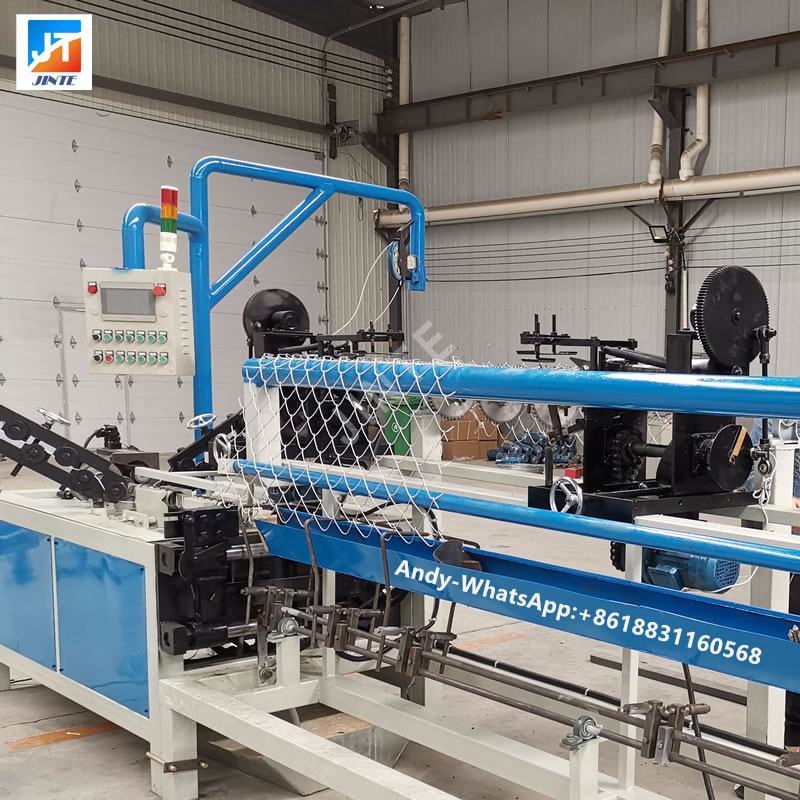

Product:Fully-automatic chain link fence machine
Chain link fence machine also name diamond mesh making machine. It is used to make metal fence.
It is suitable for high quality low-carbon wire, galvanized wire, aluminum alloy wire, aluminum-clad steel wire, stainless steel wire, pvc coated wire etc.
Advantage:
1. PLC control
2. Material feeding by servo motor
3. Single die single spiral
4. Automatically weaving mesh

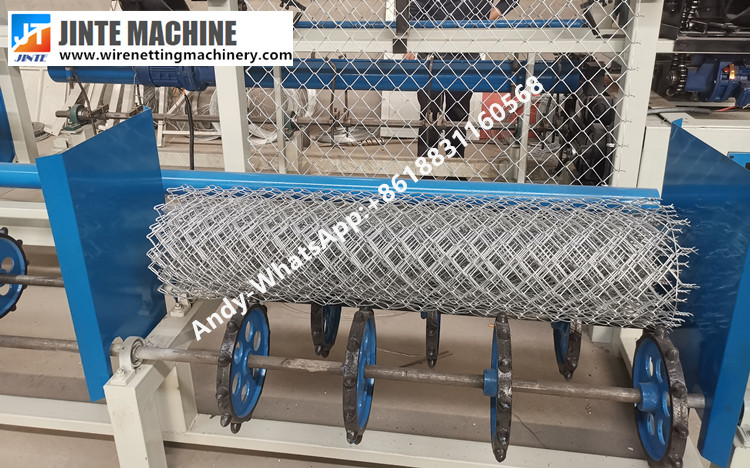

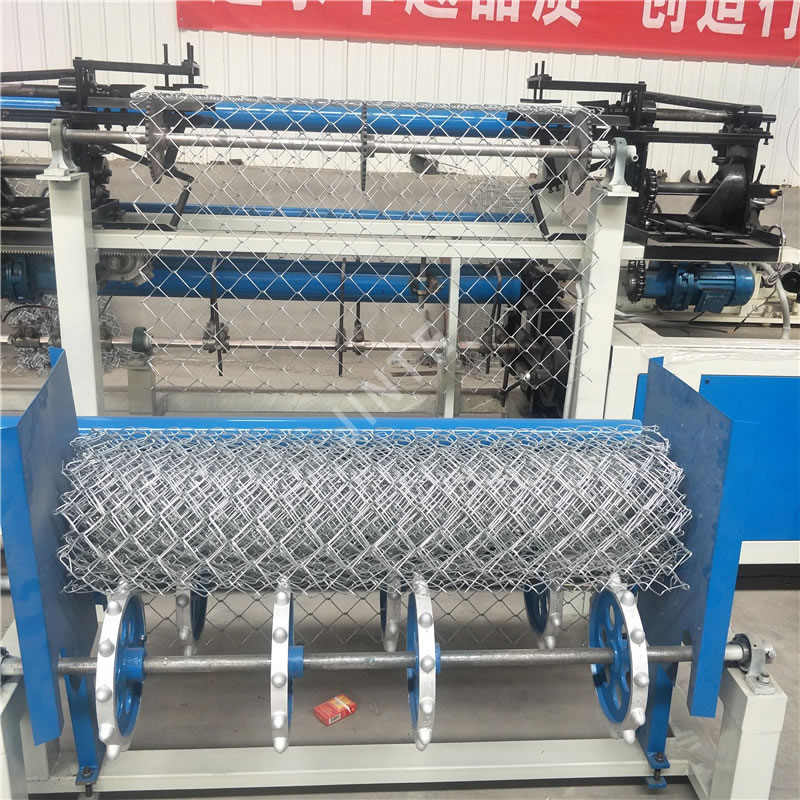

5. The chain link fence is automatically wond to form rolls when the desired length is manufactured.

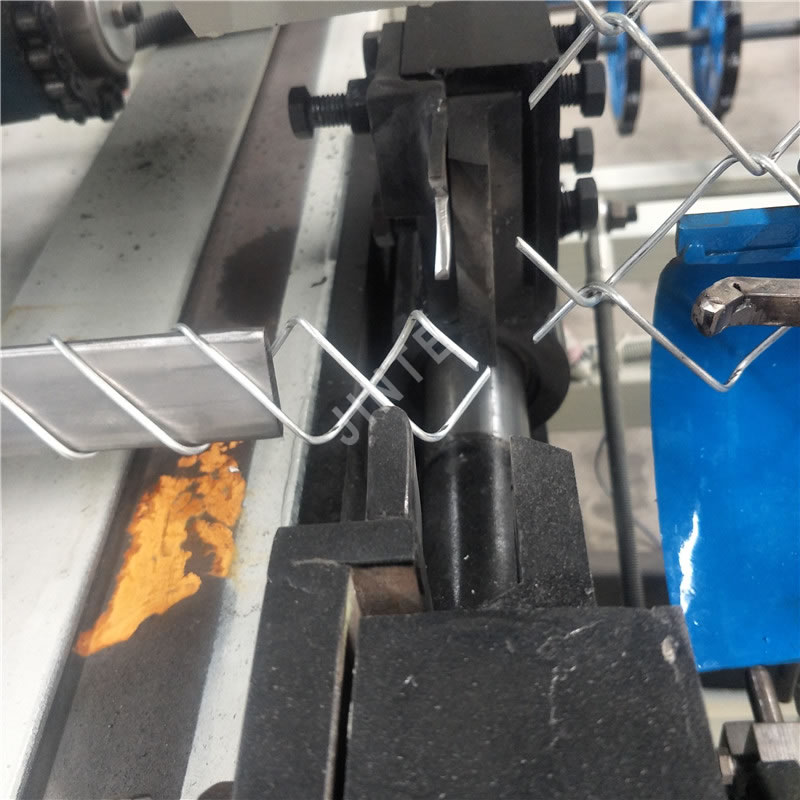

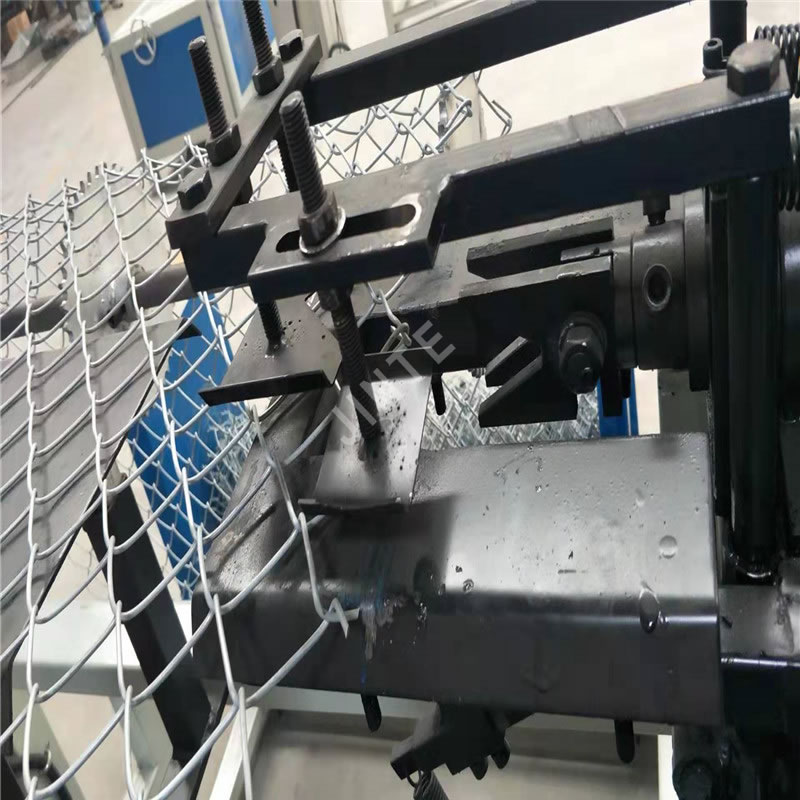

6. Fence side can be twisted or knuckled as required
Usage:
The finished chain link mesh is used as fencing for sports field, river banks, construction and residence, also animal fencing.
Especially, well suitable for a wide range of application, for example for enclosing Lawn, Road. Steel diamond mesh has a heavy galvanized coating to ensure a long life.
TECHNICAL PARAMETER
| Model | Single wire Fully automatic chain link fence machine | Double wire Fully automatic chain link fence machine | ||||
| Wire Dia. | 1.5-5.0mm | 1.8-5.0mm | ||||
| Hole Size | 25*25mm-120*120mm | 30*30mm-120*120mm | ||||
| Material | galvanized wire, pvc wire | galvanized wire, pvc wire | ||||
| Width | 2m | 3m | 4m | 2m | 3m | 4m |
| Capacity | 20-120M2/h | 30-160M2/h | ||||
| Power | 3.8kw/h | 5.5kw/h | ||||
| Mould | 4set mould for free | 4set mould for free | ||||
| Size(L*W*H) | 3.8*3.2*1.5M | 4.8*3.2*1.5M | 5.8*3.2*1.5M | 5*2.2*1.7M | 6*2.2*1.7M | 7*2.2*1.7M |
| Weight | 1.7T | 1.8T | 1.9T | 1.9T | 2.0T | 2.1T |
| Warranty | One year | |||||
| Operation | one person control 2 machine | |||||

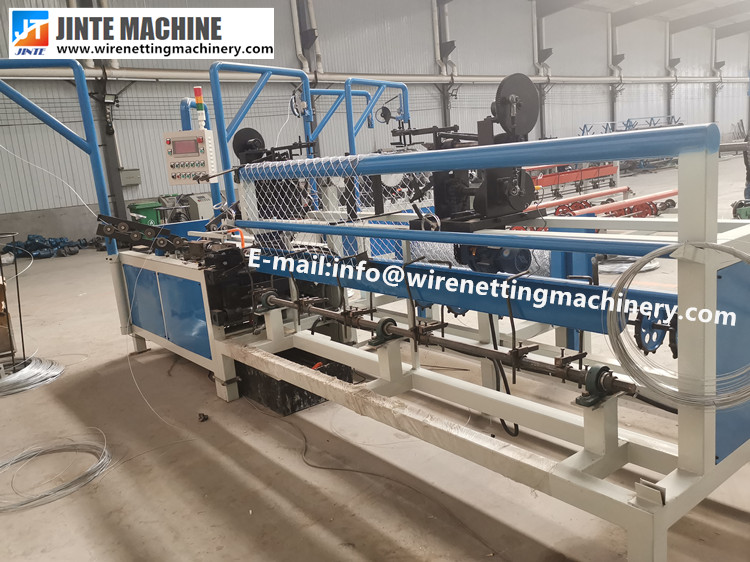

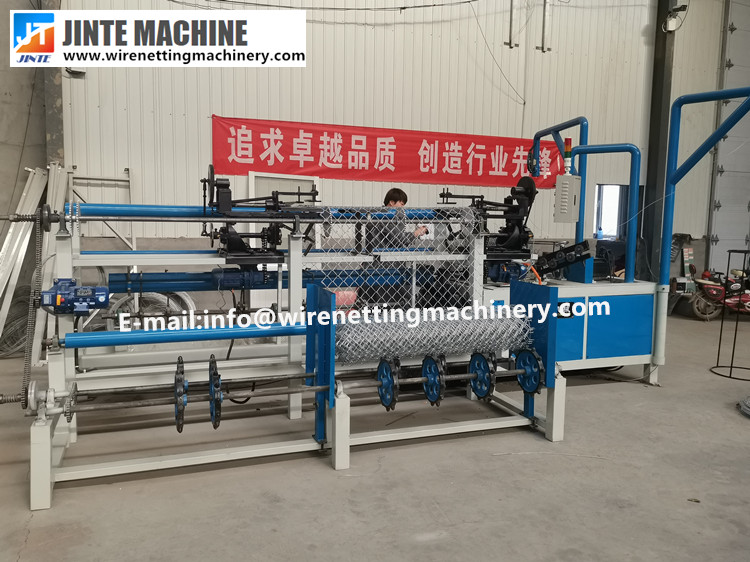

MACHINE DESCRIPTION<

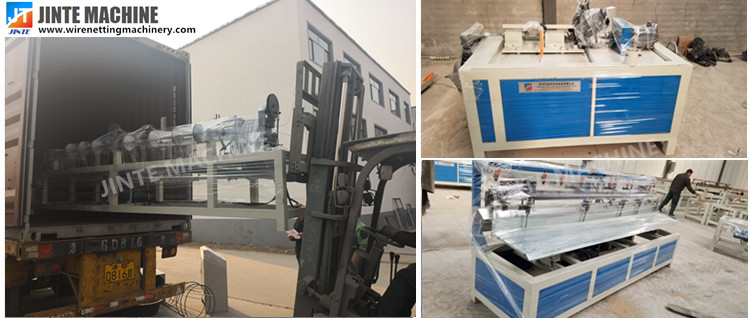

PACKAGING&SHIPPING
OUR CLIENT:
RELATED PRODUCTS
