High Speed Barbed wire machine
Barbed wire machine is used to produce barbed wire, which is widely used for safety protection function,national defense, animal husbandry, playground fence,agriculture,expressway, etc.
We always keep the best professional design and manufacturing technology in this barbed wire machines with over 20years experience.
Barbed wire making machine include three type such as CS-A type is twisted barbed wire machine,CS-Bis single barbed wire making machine and CS-C type is double reverse twist
barbed wire machine,other type can be ordered as your request.
Jinte Machinery offers only the best equipment for fencing manufacturers. If you’re interested in ordering this machine from our company, contact me today for additional details.
TECHNICAL PARAMETERS
| Unit | CS-A Type | CS-B Type | CS-C Type | |
| Motor power | KW | 2.2/3 | 2.2/3 | 2.2/3 |
| Voltage | v | 380V 50Hz or 220V 60hZ or 415V 60Hz or customized | ||
| Strand wire diameter | MM | 1.6-3.0 | 2.0-3.0 | 1.6-2.8 |
| Barb wire diameter | MM | 1.6-2.8 | 1.6-2.8 | 1.6-2.8 |
| Barb pitch | INCH | 3/4/5/6 | 3/4/5/6 | 3/4/5/6 |
| Twisted number | / | 3-5 | 3 | 7 |
| Main drive shaft speed | R/MIN | 402 | 355 | 355 |
| Raw material | / | Galvanized steel wire/PVC coated wire/black wire etc. | ||
| Production | / | 77kg/h 20meters/minute | 40kg/h 17meters/minute | 40kg/h 17meters/minute |
| Total weight | KG | 1200 | 1000 | 1000 |
Note: 1.CS-A barbed wire machine issuitable for low-carbon wire,g i wire,pvc coated wire etc.
2.CS-B barbed wire machine is is suitable for low-carbon wire,galvanized wire.
3.CS-C barbed wire machine is is suitable for low-carbon wire,galvanized wire.

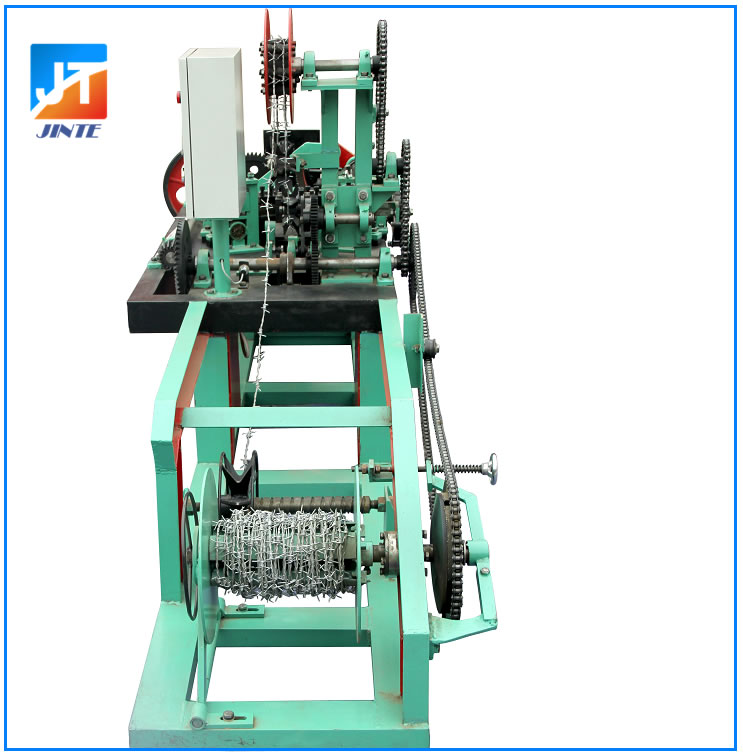

PRODUCT IMAGE

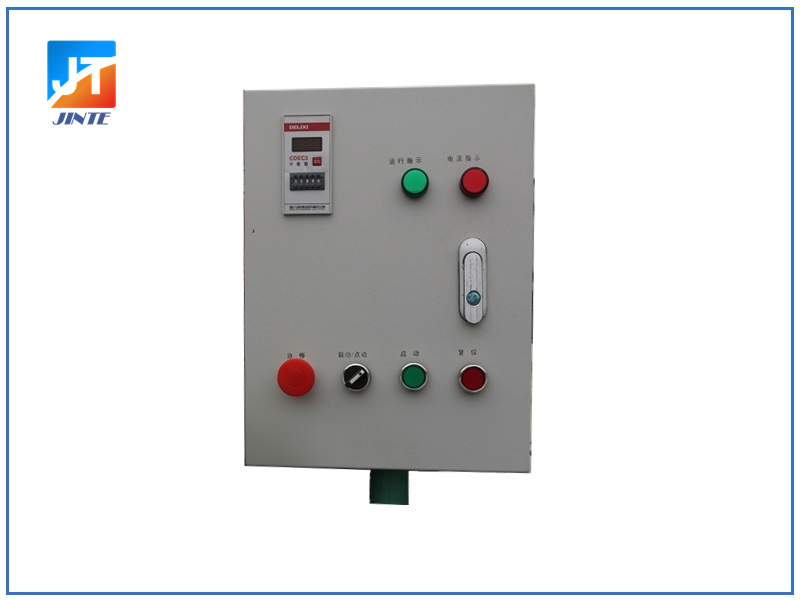

CONTROL CABINET

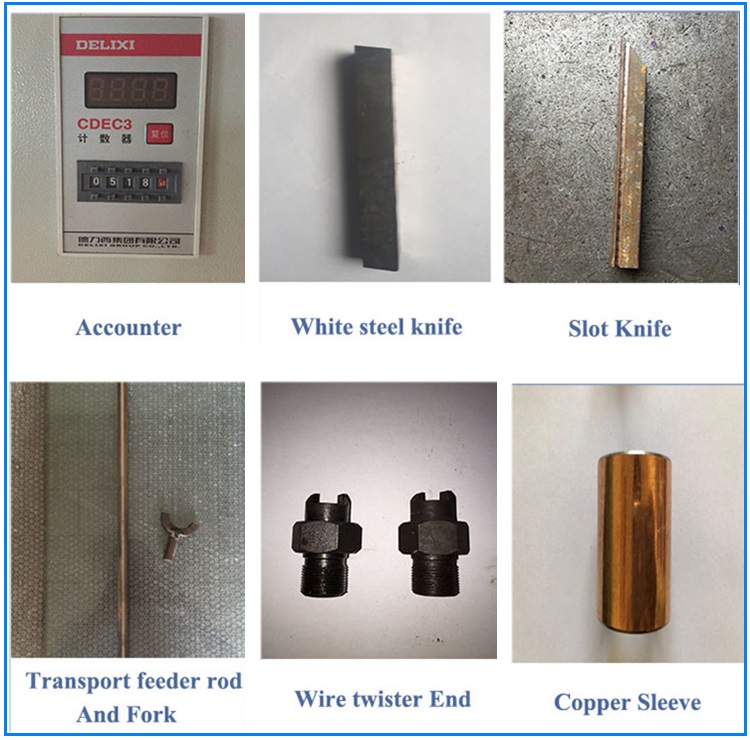

SPARE PARTS

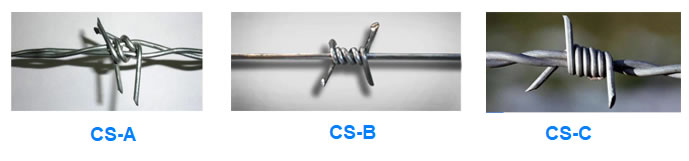

FINISHED PRODUCTS

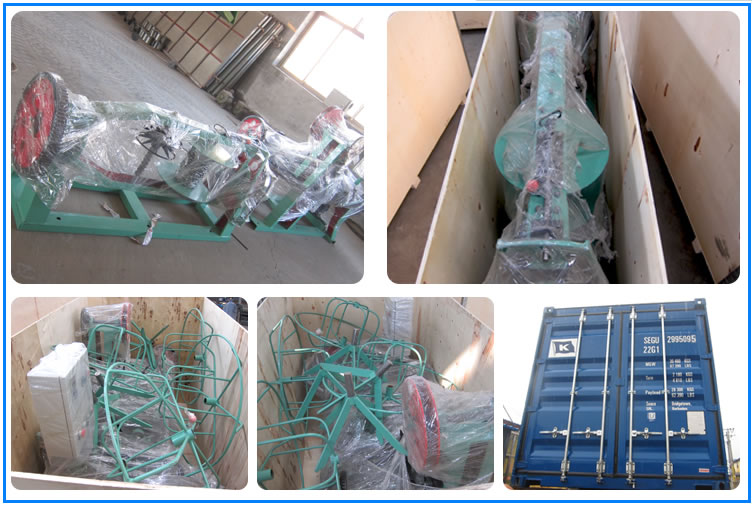

PACKING & DELIVERY
