Single Wire Chain Link Fence Machine

If you have any enquiry about quotation or cooperation, please feel free to email us at jtjx@wirenettingmachinery.com or use the following enquiry form. Our sales representative will contact you within 24 hours. Thank you for your interest in our products.

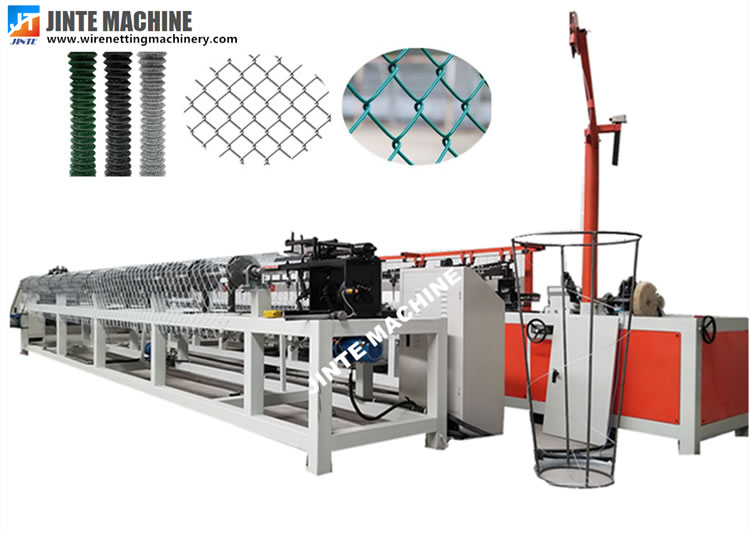

Single Wire Chain Link Fence Machine

Product: Fully-automatic chain link fence machine

Chain link fence machine also name diamond mesh making machine. It is used to make metal fence.

It is suitable for high quality low-carbon wire, galvanized wire, aluminum alloy wire, aluminum-clad steel wire, stainless steel wire, pvc coated wire etc.

Best Price Chain Link Fence Weaving Making Wire Mesh Machine

Advantage:

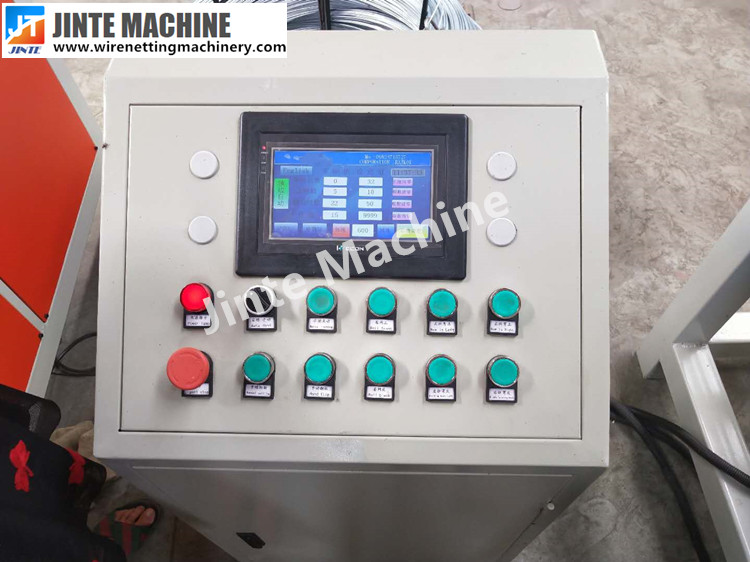

1. PLC control

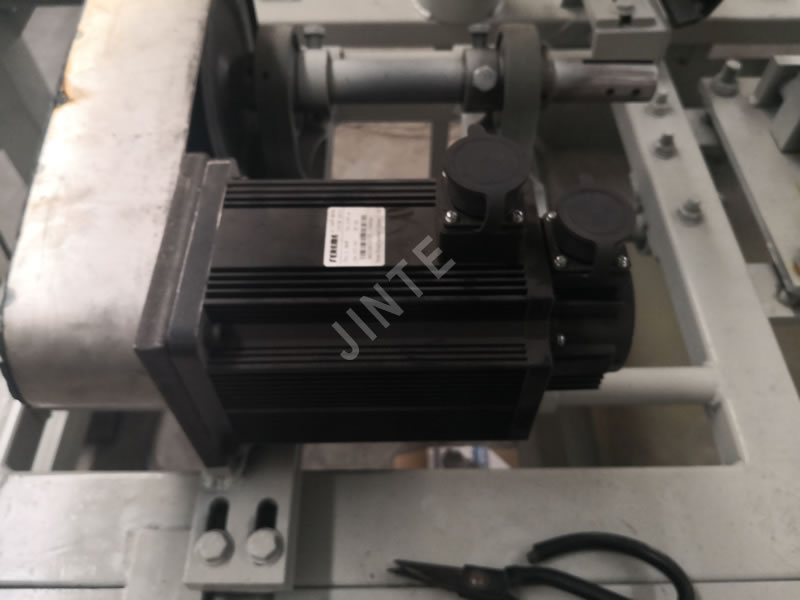

2. Material feeding by servo motor

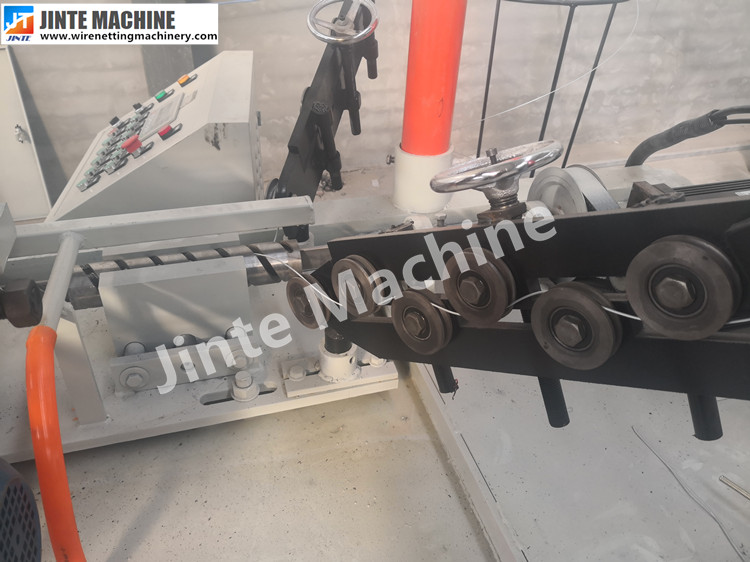

3. Single die single spiral
4. Automatically weaving mesh

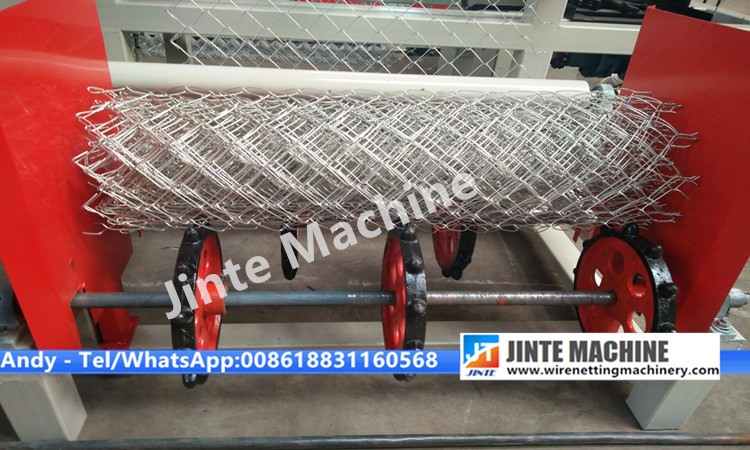

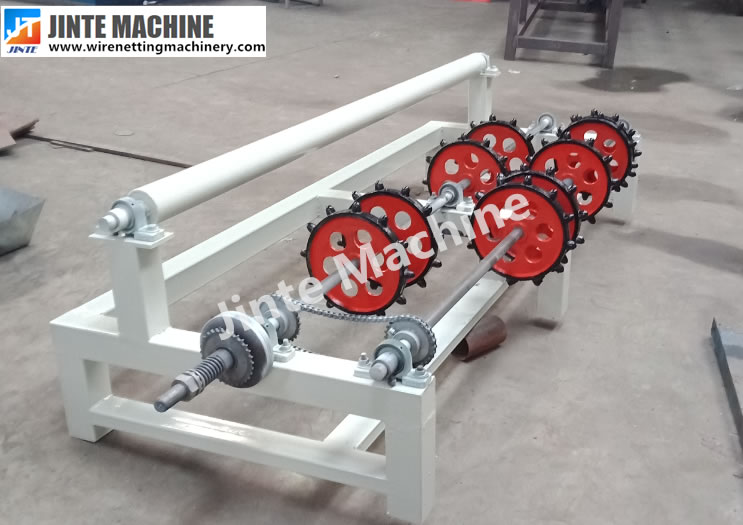

5. The chain link fence is automatically wond to form rolls when the desired length is manufactured.

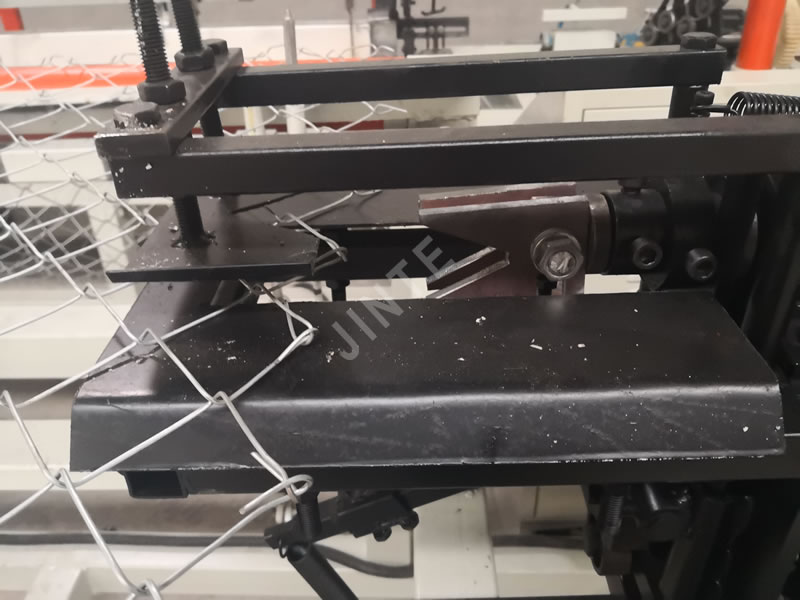

6. Fence side can be twisted or knuckled as required

Usage:

The finished chain link mesh is used as fencing for sports field, river banks, construction and residence, also animal fencing.

Especially, well suitable for a wide range of application, for example for enclosing Lawn, Road. Steel diamond mesh has a heavy galvanized coating to ensure a long life.

TECHNICAL PARAMETER

Model Single wire
Fully automatic chain link fence machine
Double wire
Fully automatic chain link fence machine
Wire Dia. 1.5-5.0mm 1.8-5.0mm
Hole Size 25*25mm-120*120mm 30*30mm-120*120mm
Material galvanized wire, pvc wire   galvanized wire, pvc wire
Width 2m 3m 4m 2m 3m 4m
Capacity 20-120M2/h 30-160M2/h
Power 3.8kw/h 5.5kw/h
Mould 4set mould for free 4set mould for free
Size(L*W*H) 3.8*3.2*1.5M 4.8*3.2*1.5M 5.8*3.2*1.5M 5*2.2*1.7M 6*2.2*1.7M 7*2.2*1.7M
Weight 1.7T 1.8T 1.9T 1.9T 2.0T 2.1T
Warranty One year
Operation one person control 2 machine

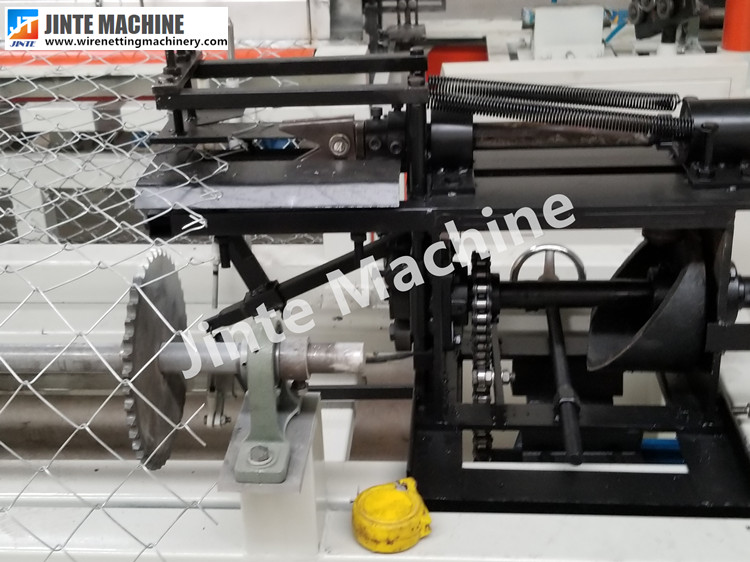

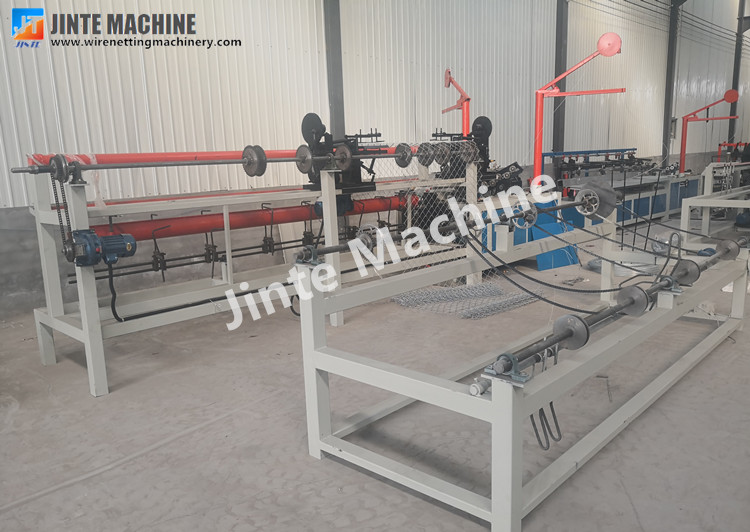

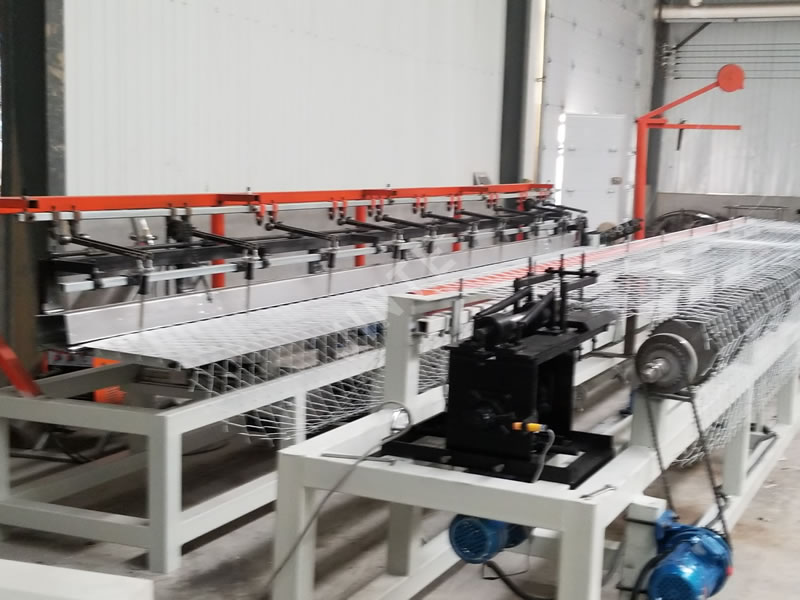

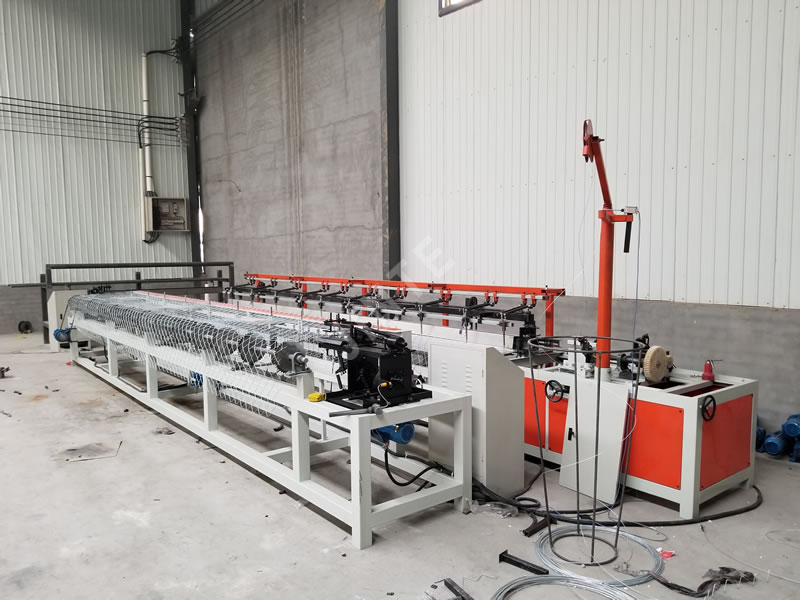

MACHINE DESCRIPTION

Best Price Chain Link Fence Weaving Making Wire Mesh Machine

Best Price Chain Link Fence Weaving Making Wire Mesh Machine

Best Price Chain Link Fence Weaving Making Wire Mesh Machine

Best Price Chain Link Fence Weaving Making Wire Mesh Machine

Best Price Chain Link Fence Weaving Making Wire Mesh Machine

Best Price Chain Link Fence Weaving Making Wire Mesh Machine

Best Price Chain Link Fence Weaving Making Wire Mesh Machine

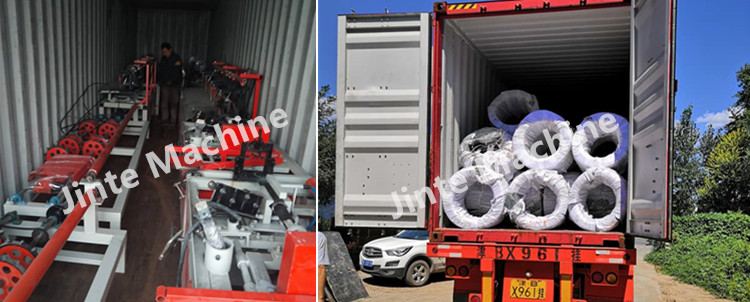

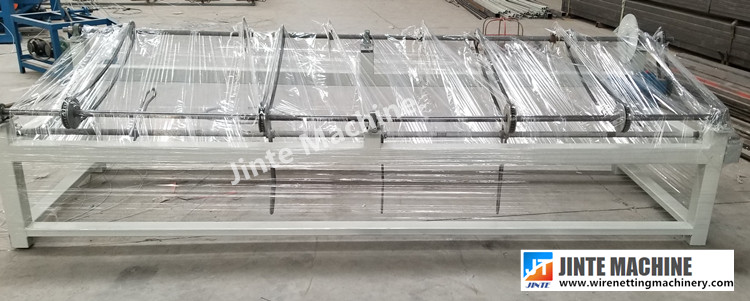

PACKAGING&SHIPPING

Best Price Chain Link Fence Weaving Making Wire Mesh Machine

OUR CLIENT:

Best Price Chain Link Fence Weaving Making Wire Mesh Machine
