Normal twisted Hexagonal Wire Netting Machine
The machine Machine is designed to produce hexagonal screens with galvanized low carbon steel wires, suitable for structural, heat insulation, protective, and fencing applications.
The machines of this series are of horizontal design,ensuring smooth running and high productivity.
With special coiling machine, bobbin winding machine as spare parts.
Raw material:Galvanized steel wire,low carbon steel wire,PVC coated wire etc.
Usage:
Feeding chicken, rabbit, duck, geese, fish and other poultry or small animals. Style can be fence and cage.
Product Description
| Normal twisted hexagonal wire mesh machine |
| Hexagonal mesh machine, also named chicken mesh machine, is the special equipment to produce the hexagonal wire netting mesh. This machine adopts the principle of clockwise and counterclockwise twisting. Our factory produce the straight and reverse twisted hexagonal wire netting machine with the models such as 1/2",3/4",1/2"1",2",3",4" and so on | |
|
TECHNICAL PARAMETERS
| MODEL | MESH WIDTH (MM) | NETTING WIDTH(Meter) | WIRE DIA (MM) | SPEED (Meter) | OUTSIDE DIMENSIONS(Meter) | MOTOR (KW) | WEIGHT (Ton) |
| 1/2" | 15x22 | 1.5-4.7 | 0.35-0.7 | 60 | 4.2-6.2X1.7X1.6 | 3.0 | 4.2-5.5 |
| 3/4" | 20x35 | 1.5-4.7 | 0.35-0.7 | 80 | 4.2-6.2X1.7X1.6 | 3.0 | 4.2-5.5 |
| 1" | 25x38 | 1.5-4.7 | 0.35-1.2 | 90 | 4.2-6.2X1.7X1.6 | 3.0 | 4.2-5.5 |
| 1.2" | 30x40 | 1.5-4.7 | 0.35-1.2 | 100 | 4.2-6.2X1.7X1.6 | 3.0 | 4.2-5.5 |
| 1.5" | 40x53 | 1.5-4.7 | 0.5-2.0 | 140 | 4.2-6.2X1.7X1.6 | 3.0 | 4.2-5.5 |
| 2" | 50x85 | 1.5-4.7 | 0.6-2.2 | 160 | 4.2-6.2X1.7X1.6 | 3.0 | 4.2-5.5 |
| 3" | 80x100 | 1.5-4.7 | 0.6-2.4 | 180 | 4.2-6.2X1.7X1.6 | 3.0 | 4.2-5.5 |
| 4“ | 100x140 | 1.5-4.7 | 0.8-3.0 | 200 | 4.2-6.2X1.7X1.6 | 3.0 | 4.2-5.5 |

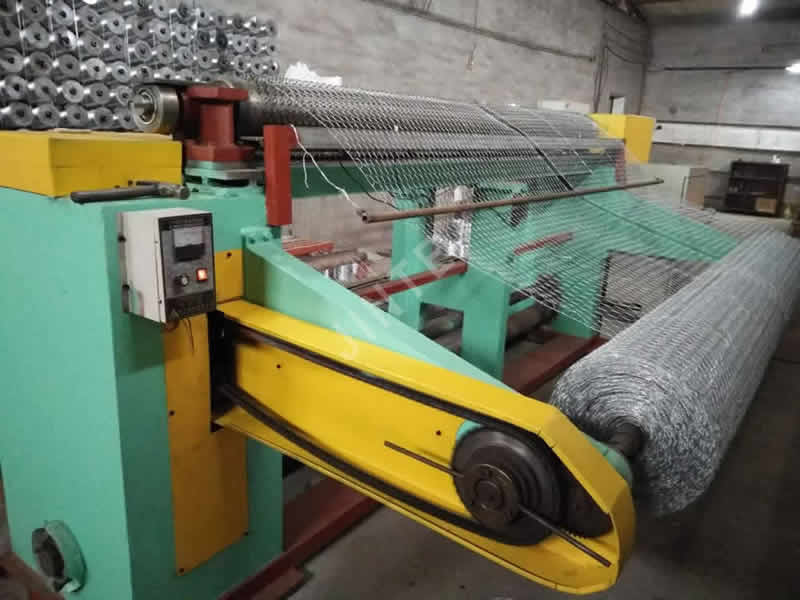

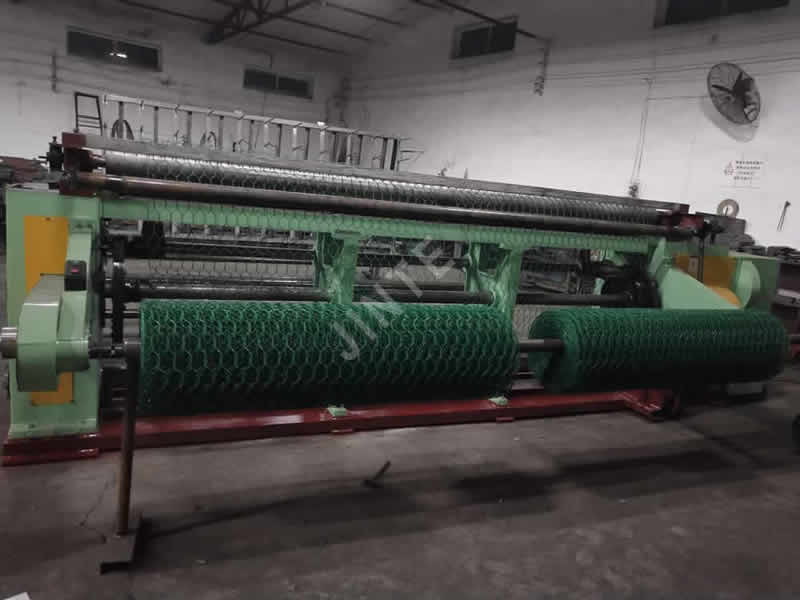

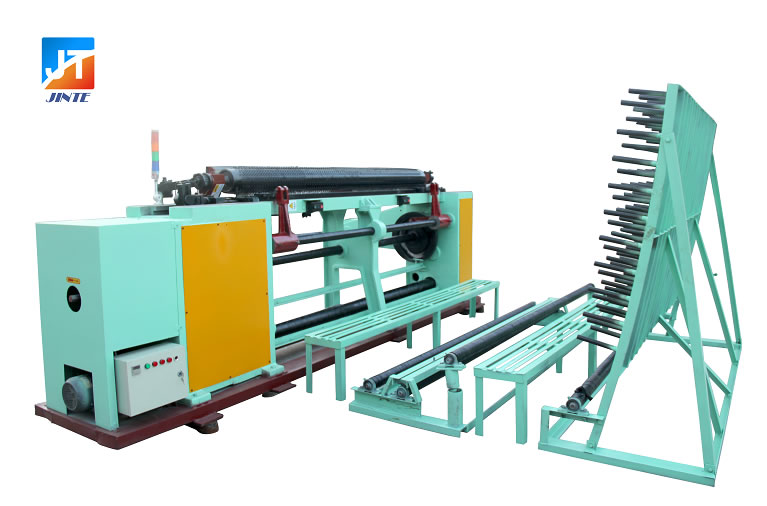

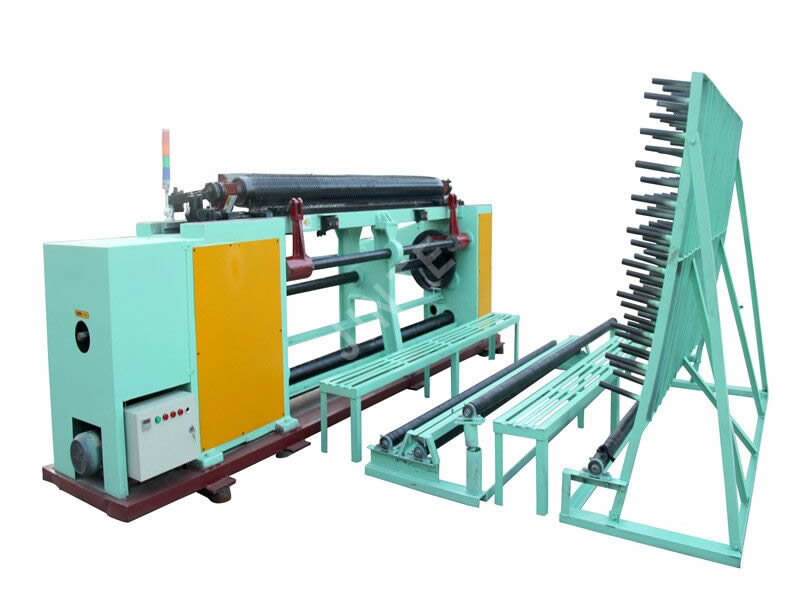

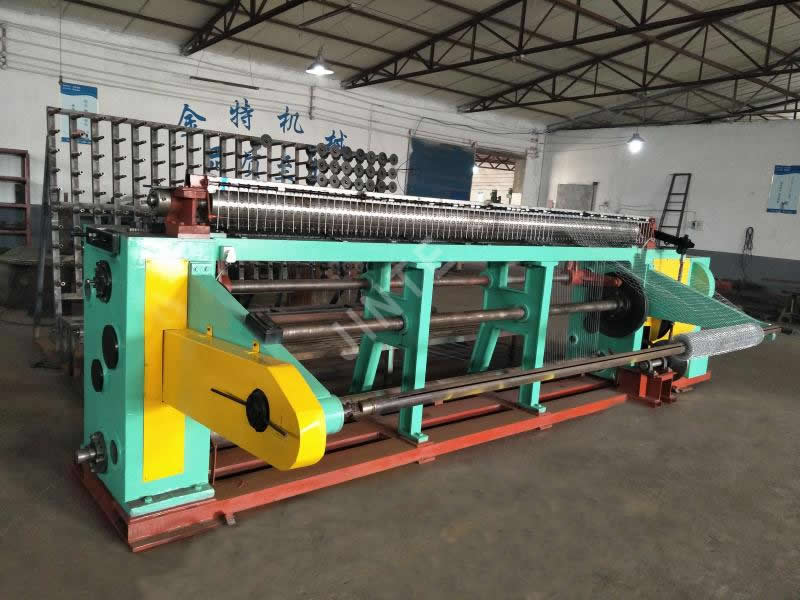

PRODUCT IMAGE

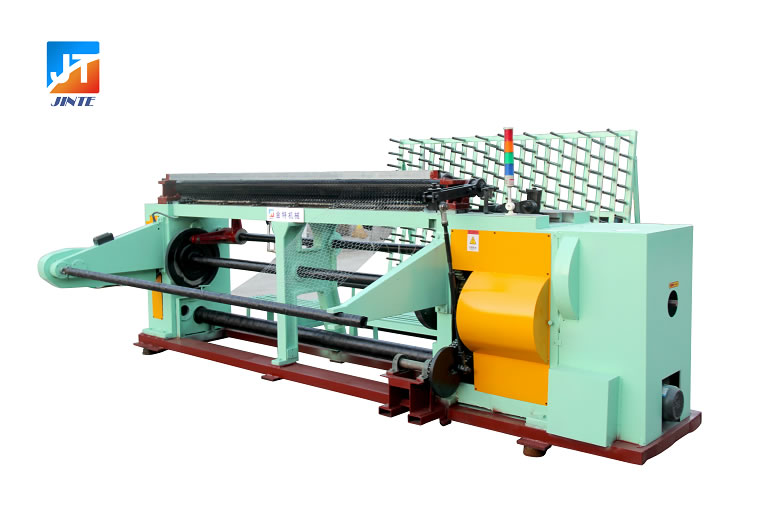

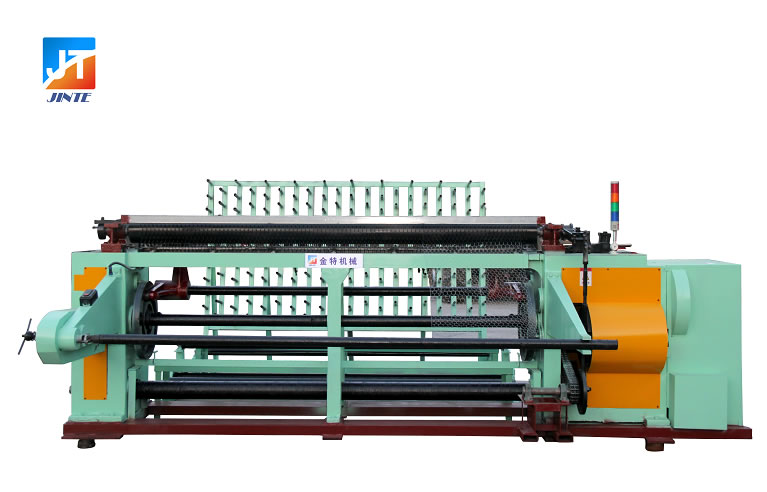

FRONT OF THE MACHINE

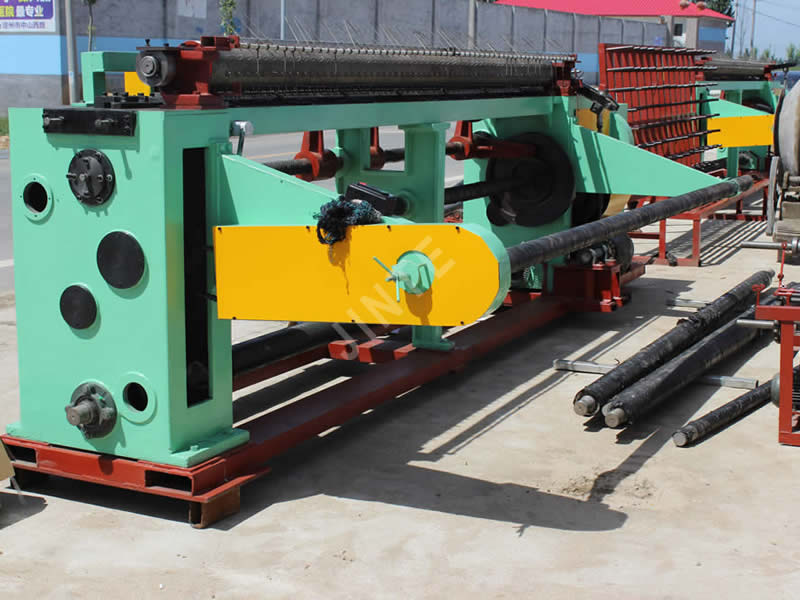

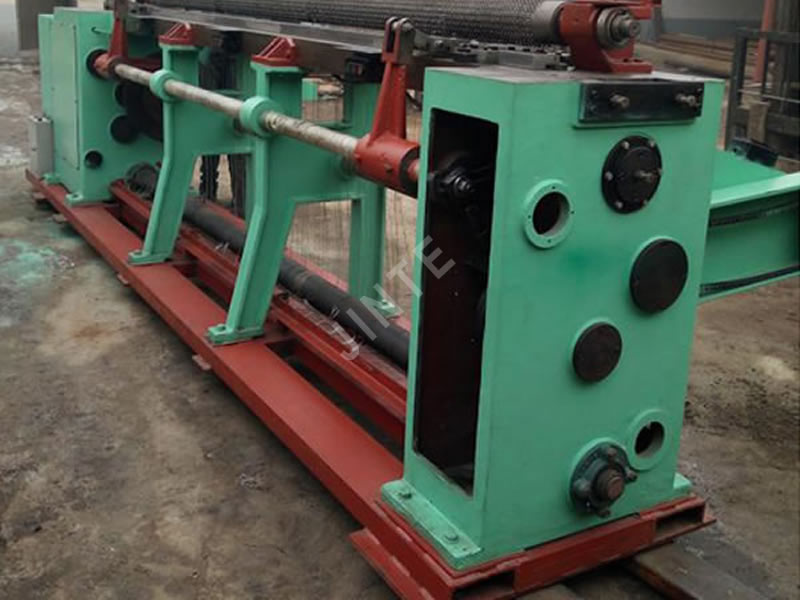

BACK OF MACHINE

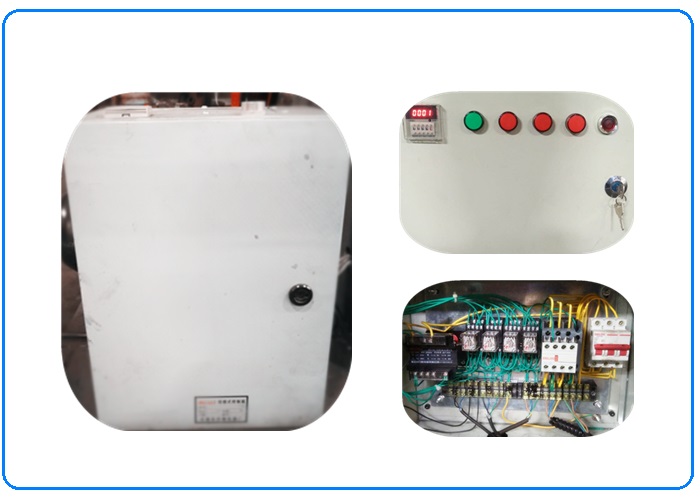

CONTROL CABINET
ADVANTAGE
1. One set of main machine can only produce one mesh size.
2. One set of main machine can make several wire diameters.
3. You can weave two or three net with the same machine.
4. Adopt the principle of clockwise and counterclockwise twisting; no need to make iron wire spring form to increase productivity.

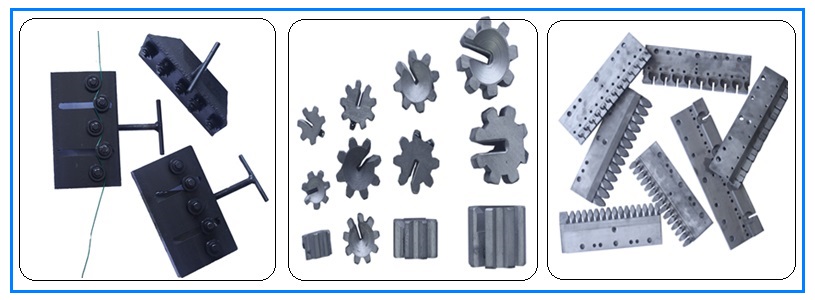

SPARE PARTS

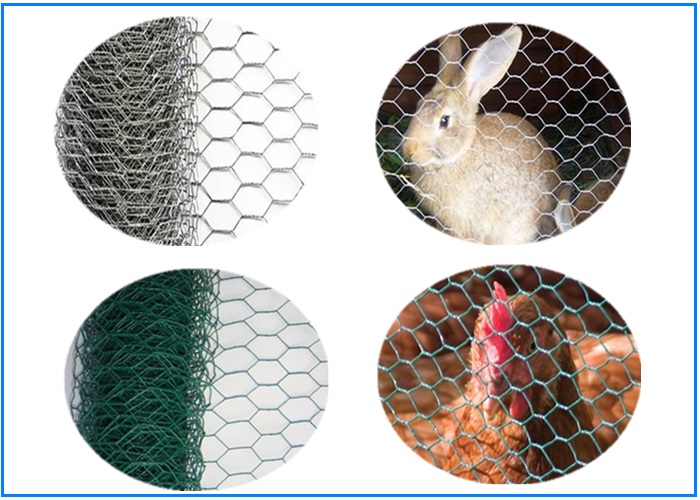

FINISHED PRODUCTS

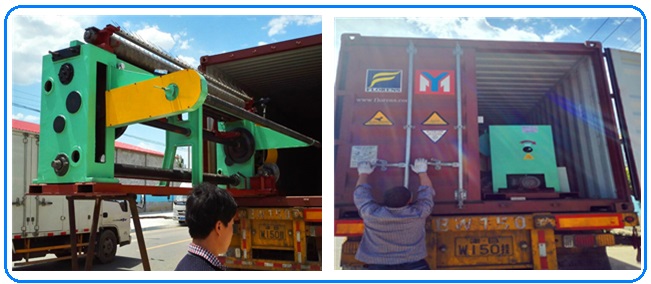

PACKING & DELIVERY
